Stock Code:002449
Back

IMD-M07

FEATURES

①Integrated Matrix Device (IMD) solution, smaller pixel pitch 0.78, flip chip design and energy saving

②Integrated Matrix Device (IMD) solution, 8 pins design, solve the problems of soldering strength and crash.

③All flip chip design, better reliability.

④Black matt finish encapsulation, no specular reflection, higher brightness and contrast, higher definition image display

⑤Achieve to the seamless combination, no modular color difference in whole screen, 100% tested and binning, better color consistency.

PRODUCT PARAMETERS

Product Name

Color IF(mA)
TEST
λd(nm)
Typ
Iv(mcd)
Typ
Vf(V)
Typ
View angle
(deg.)

IMD-M07
1.32*1.32*0.63

5 620 33 2.0 120
2 535 35 2.5 120
2 464 5.5 2.6 120

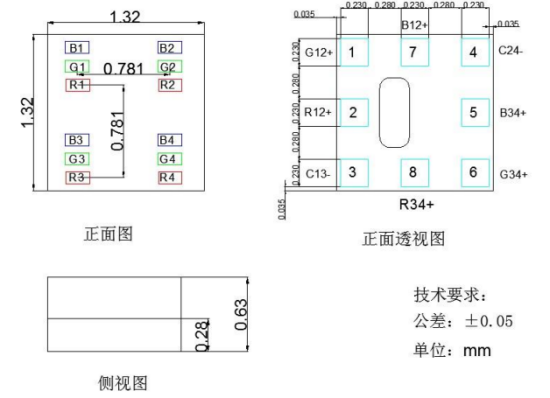

DIMENSIONS/UNIT(mm)
