Stock Code:002449
Back

IMD-M09-C

FEATURES

①Integrated Matrix Device (IMD) solution, pixel pitch 0.9375, higher definition image display.

②Integrated Matrix Device (IMD) solution, 8 pins design, solve the problems of soldering strength and crash.

③High precision cutting technology, solve the problems of warping and mixed light in display, achieve to the seamless combination.

④Reduce the effect of moore grain, no modular color difference in whole screen, 100% tested and binning, better color consistency.

PRODUCT PARAMETERS

Product Name

Color IF(mA)
TEST
λd(nm)
Typ
Iv(mcd)
Typ
Vf(V)
Typ
View angle
(deg.)

IMD-M09T
1.6×1.6×0.63

5 620 13 2.0 120
2 535 22 2.6 120
2 464 3 2.7 120

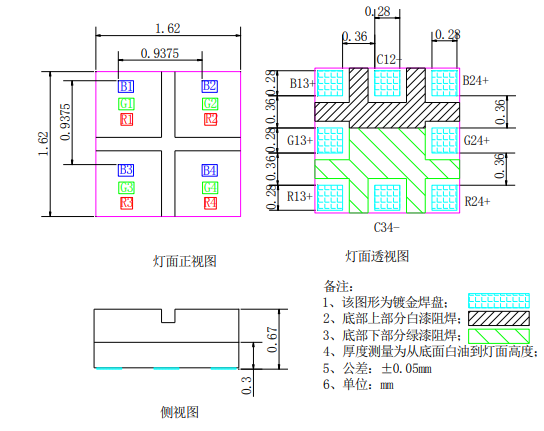

DIMENSIONS/UNIT(mm)
