Stock Code：002449
Back

Grow-light P3528 Series

Grow-light TOP LED

FEATURES:


· White series:uniform wavelength， helpful in growing of leafy vegetable
· Red series：610-720nm;helpful in blossoming and fruiting，controlling the flower season
· Blue，400-510nm   contribute to promote growth of leaves，synthesis of protein and fruiting by photosynthesis.
· Rated power:0.2W

ABSOLUTE MAXIMUM RATINGS：

Rated power Color Part number λp（n m ) I F( mA)
TEST
 Po（mW）
Typ.
 VF( V)
Typ.
0.2W infrared FM- P3528I RS- 730U 730 60 70 2.0
crimson FM- P3528HRS- 660U
 660 60
 70
 2.0
blue FM- P3528BS- 450Q
 450 60
 90 3.2
pink FM-P3528WPS-450Q
 ( 0. 351, 0. 274)
 60
 90
 3.2
Cambridge blue FM- P3528WBS- 450Q
 ( 0. 25, 0. 213)
 60
 90
 3.2
white FM- P3528WNS- 450Q
 ( 0. 306, 0. 29)
 60
 90
 3.2

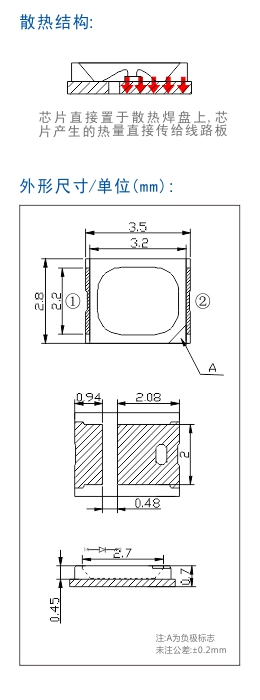

DIMENSIONS/UNIT(mm)：
