Stock Code：002449
Back

P3528 Series

High Luminous Efficacy

FEATURES:

? Thin encapsulation with heat sink，efficient heat dissipation

? module etc. cost-effective
? Applicable to LED bulb，downlights

? Rated power：1 W / 0 . 5 W / 0 . 2 W


ABSOLUTE MAXIMUM RATINGS:

Rated power Color Part number Color temp（K） CRI Ra Min I F( mA)
TEST
 Φv（l m）
Typ.
 VF( V)
Typ.
 I R( μA)
Max*1
1W/ 6V
 Natural white FM-CP3528WNS-460W-R80 5600-6500 80 150 100 6.4 10
Neutral white
 FM-CP3528WDS-460W-R80 3700-4200 80 150 100 6.4 10
Warm white
 FM-CP3528WLS-460W-R80
 2800-3200
 80
 150
 95 6.4
 10
1W/ 3V
 Natural white
 FM-DP3528WNS-460W-R80
 5600-6500 80
 300 100 3.2
 10
Neutral white
 FM-DP3528WDS-460W-R80
 2800-3200
 80
 300 100 3.2
 10
Warm white
 FM-DP3528WLS-460W-R80
 2800-3200
 80
 300 95 3.2
 10
0. 5W
 Natural white
 FM-P3528WNS-460W-R80
 5600-6500
 80
 150 55 3.2
 10
Neutral white
 FM-P3528WDS-460W-R80
 3700-4200
 80
 150 55 3.2
 10
Warm white
 FM-P3528WLS-460W-R80
 2800-3200
 80
 150 52 3.2
 10
0. 2W
 Natural white
 FM-P3528WNS-460Q-R80
 5600-6500
 80
 60 22 3.2
 10
Neutral white
 FM-P3528WDS-460Q-R80
 3700-4200
 80
 60 22 3.2
 10
Warm white
 FM-P3528WLS-460Q-R80
 2800-3200
 80
 60 20 3.2
 10

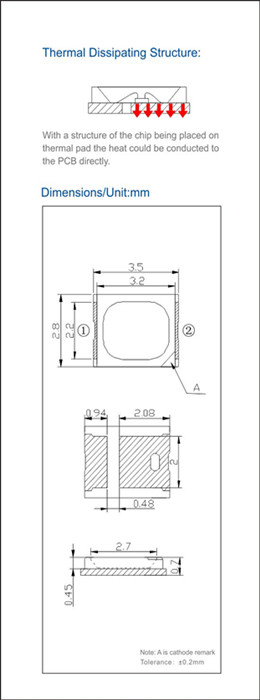

DIMENSIONS/UNIT(mm):
