Stock Code：002449
Back

EMC3030 Series

Power type EMC Package LED

FEATURES:

? Good heat resistance and UV protection.
? Great hermeticity
? High brightness high power.
? Small size，multiple application.
? Rated power：1-3W



ABSOLUTE MAXIMUM RATINGS:

Parameter Symbol Rating
Forward Current IF 40mA
Pulse Forwards Current*2
 IFP 1000mA
Reverse Voltage
 VR
 5V
Working Temperature
 TOPR
 -30~+85℃
Storage Temperature
 TSTG
 -40~+100℃


PRODUCT PARAMETERS/TA=25℃:

Color Part number Color Temp（K） CRI Ra Min
I F( mA)
TEST
Φv（l m）
Typ.
VF( V)
Typ.
I R( μA)
Max*1
Natural white FM-DE3030WNS-460W-R80 5600-6500 80 350 120 3. 2
 10
Neutral white
 FM-DE3030WDS-460W-R80 3700-4200 80 350 120 3. 2
 10
Warm white
 FM-DE3030WLS-460W-R80
 2800-3200
 80
 350
 120 3. 2
 10

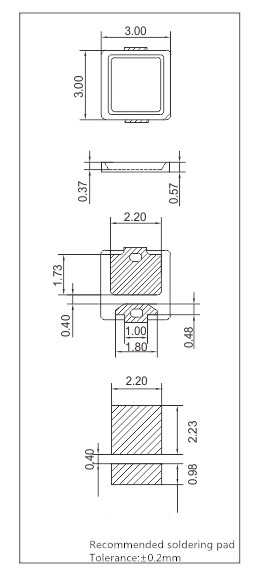

DIMENSIONS/UNIT(mm):
